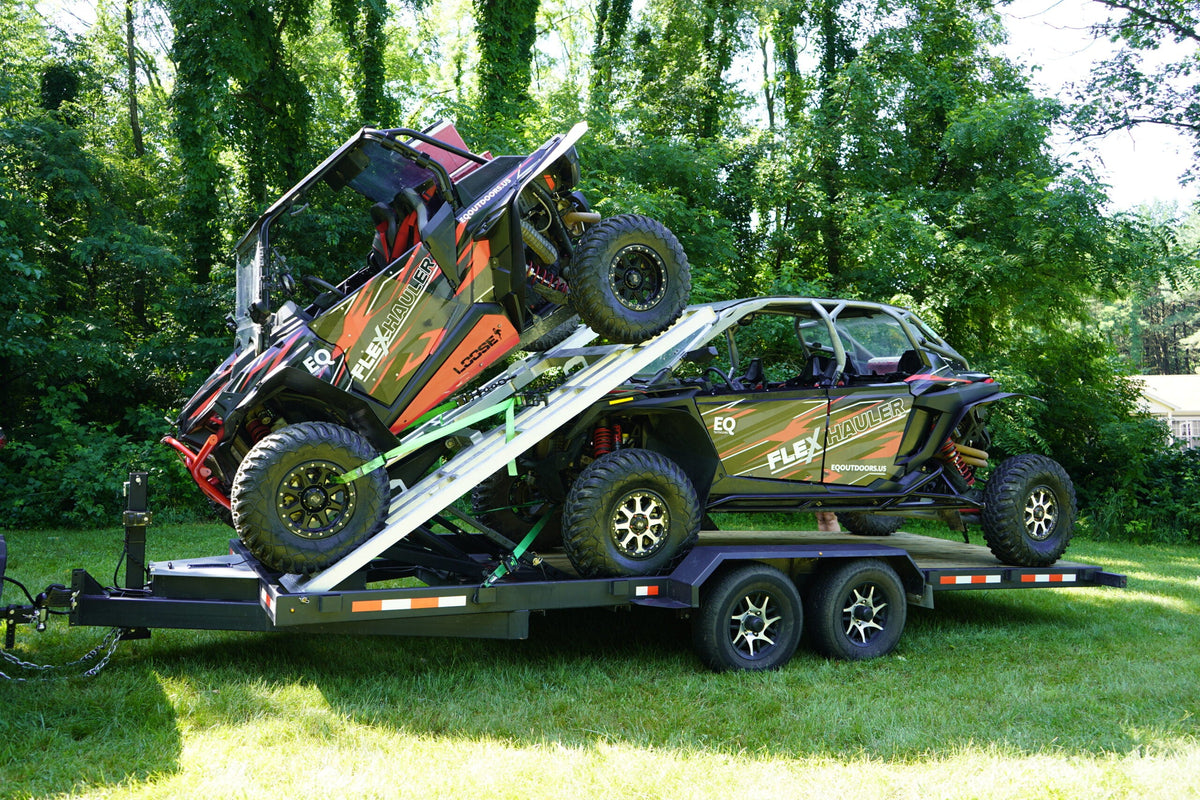

Haul two side-by-sides
on one 20' trailer.

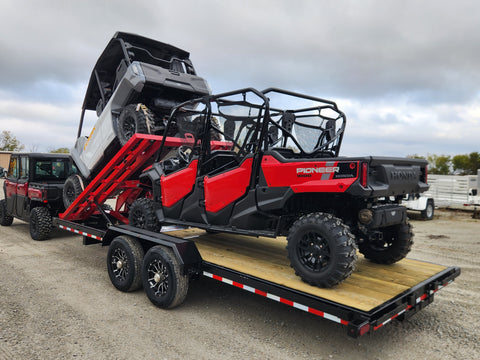

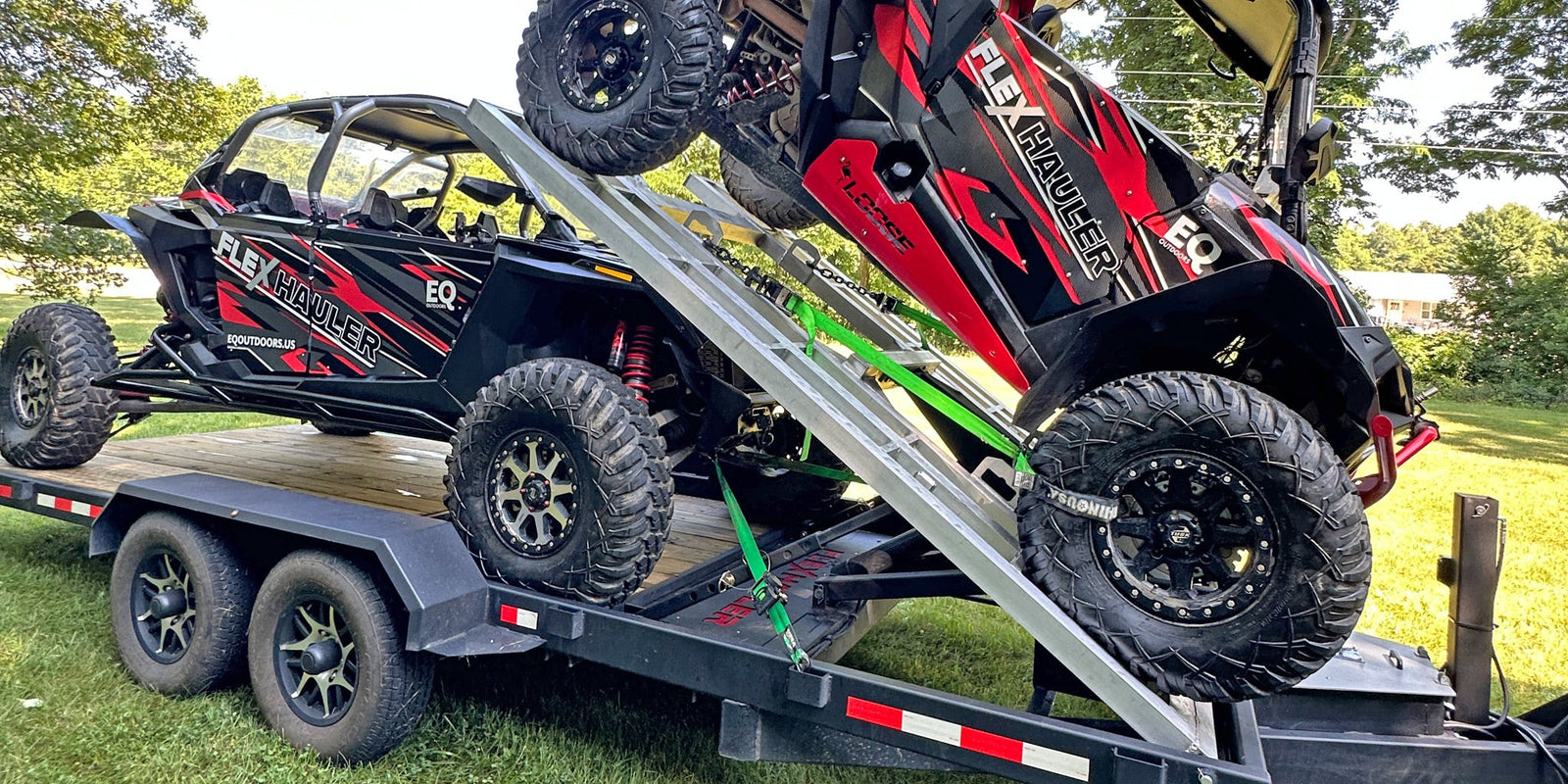

Load the first machine, raise it on the hydraulic deck, and roll the second one in underneath. Flex Hauler New England is your authorized dealer for the region.
How it works
Skip the second trailer.
Skip the second truck.

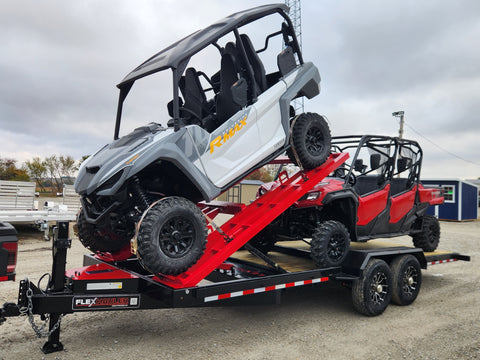

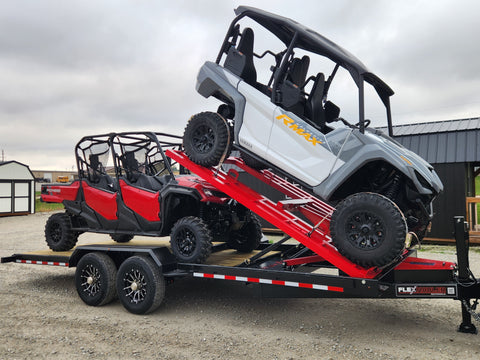

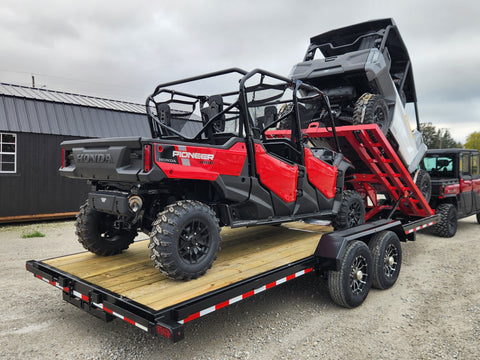

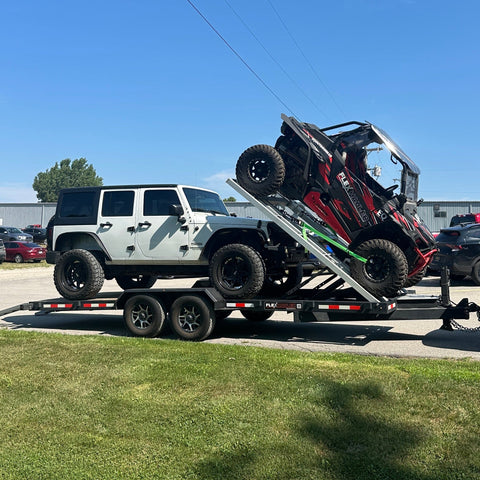

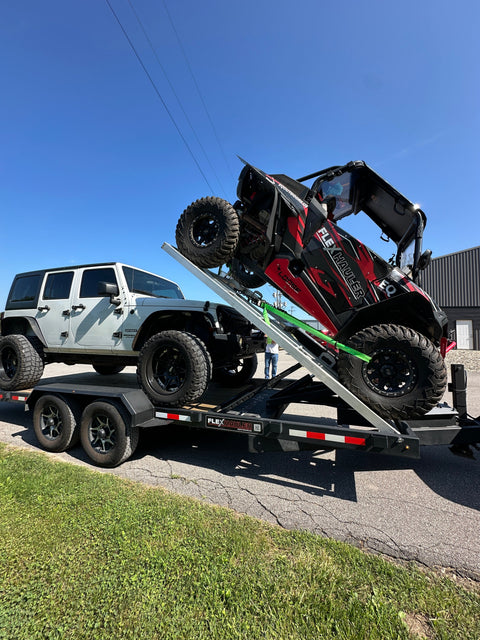

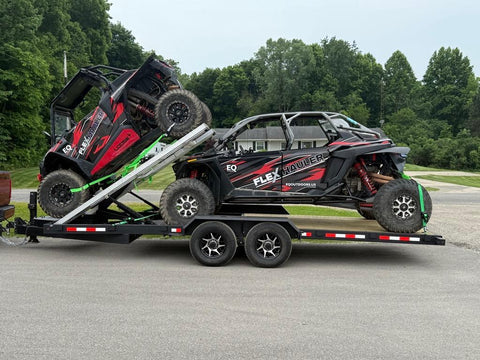

Drive the first machine up, raise the deck, drive the second one in underneath, strap both down, and pull out. One trailer, one truck, one trip to the trailhead.
Three models
The trailer that fits you
All three share the hydraulic lift, the A500 steel frame, and the 3-year structural warranty. The differences are length, axles, and payload.
Standard
- Hauls 2- and 4-seater
- Size 20' x 8.5'
- GVWR 9,990 lb
- Payload 6,770 lb

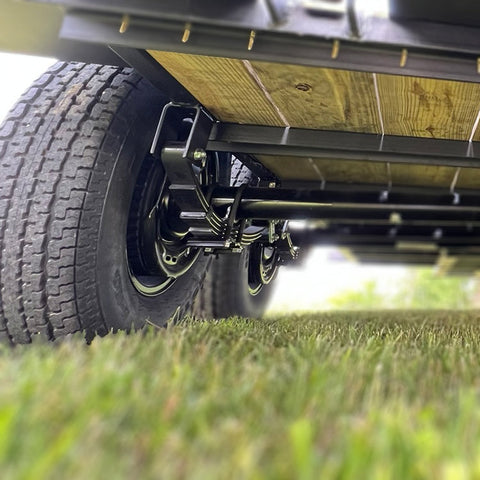

- Axles Dual 5,200 lb
- Tires ST225/75R15 E
- Tow with Half-ton pickup
XL
- Hauls 2- and 4-seater
- Size 20' x 8.5'
- GVWR 13,990 lb
- Payload 10,606 lb
- Axles Dual 7,000 lb
- Tires ST235/80R16 G
- Tow with Half-ton pickup
D4
- Hauls Dual 4-seaters
- Size 22' x 8.5'
- GVWR 13,990 lb
- Payload 10,490 lb
- Axles Dual 7,000 lb
- Tires ST235/80R16 G
- Tow with Half-ton pickup
MSRP shown. Tax, title, registration, and delivery are extra. Your final price comes from Flex Hauler New England.
Builder
Pick a model. Add options. See the MSRP.
Choose your model and check the options you want.
Let's talk, my price may come in under the quoted MSRP.
Step 1: Model
Flex Hauler Standard
Flex Hauler XL
Flex Hauler D4
Step 2: Options
Custom color
Spare tire
Hauling and fuel
Your trailer
Purpose built
A trailer designed around the machine
Most trailers hauling a side-by-side were built for something else. The Flex Hauler was designed from the frame up for side-by-sides, UTVs, and ATVs.
Hydraulics do the lifting

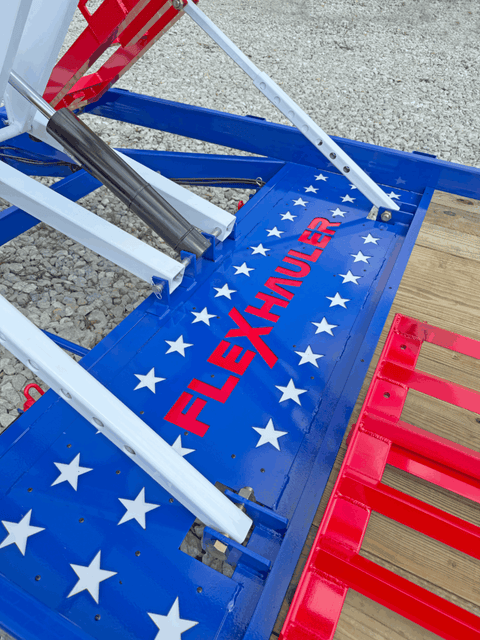

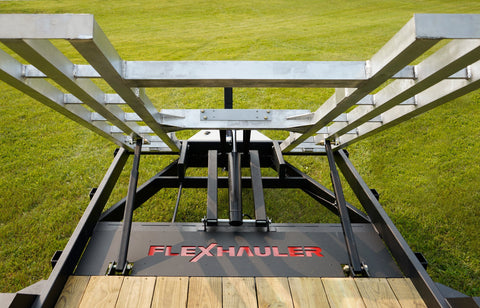

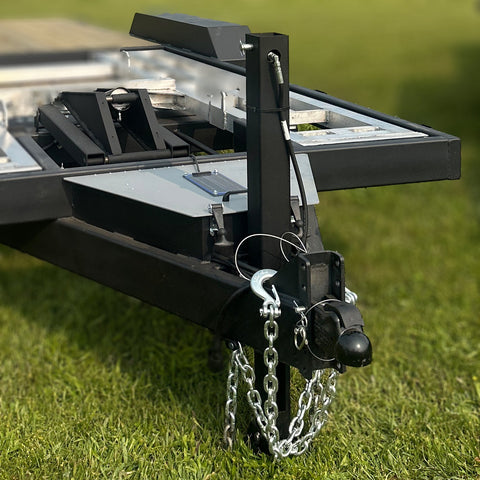

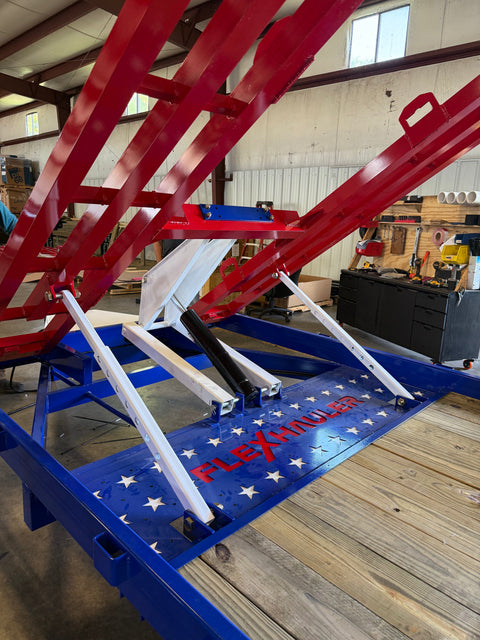

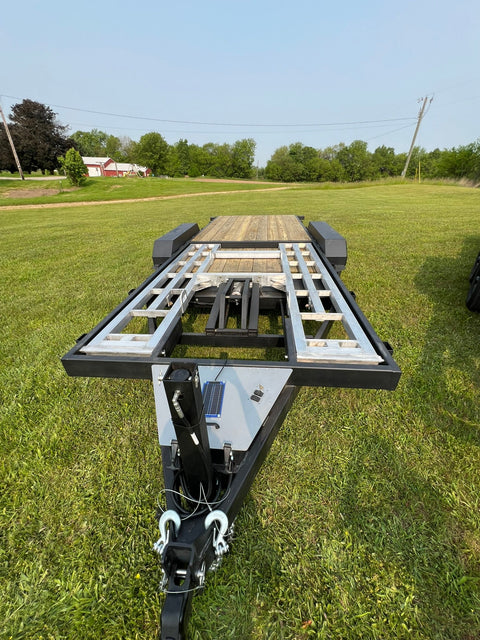

A scissor lift rated to 25,000 lb raises the deck, and a 20-inch hydraulic tongue jack lifts the front. Both run from dual-switch controls.
Solar keeps it charged

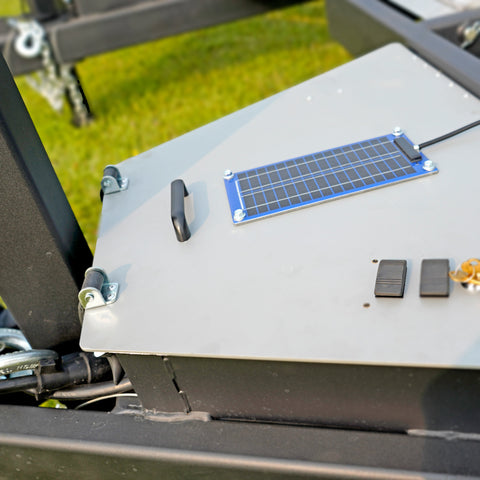

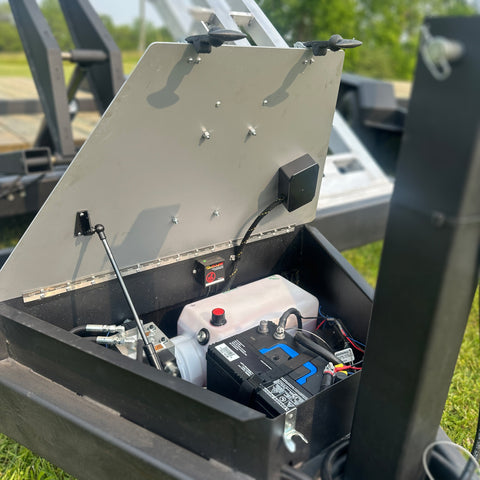

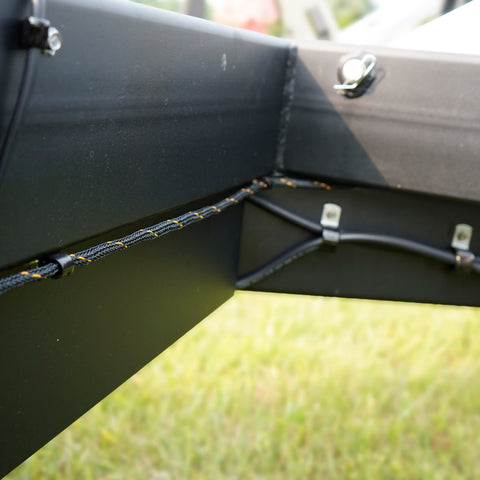

A 12V deep cycle battery powers the system, and a 3W PulseTech solar charger keeps it topped off through a braided harness.
Built for loading

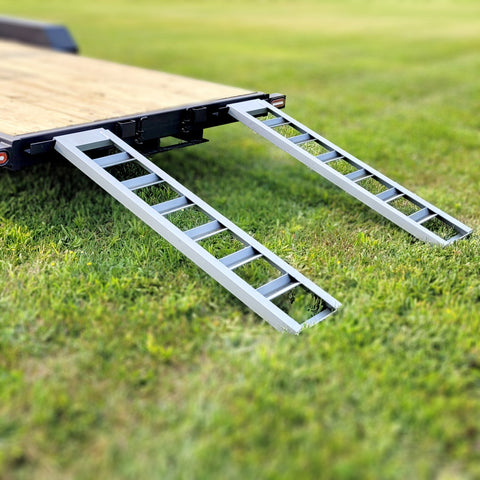

Metal ramps stow onboard, the lift ramp is 6061-T6 aluminum, and the frame carries 9 tie-down points plus stake pockets.
Designed and built in Cassopolis, Michigan by EQ Outdoors.
Side by side
Specs for all three models
| Standard | XL | D4 | |
|---|---|---|---|
| MSRP | $15,900 | $17,100 | $18,900 |
| Deck footprint | 20' x 8.5' | 20' x 8.5' | 22' x 8.5' |
| Deck height | 18" (no load) | 18" (no load) | 18" (no load) |
| GVWR | 9,990 lb | 13,990 lb | 13,990 lb |
| Payload | 6,770 lb | 10,606 lb | 10,490 lb |
| Empty weight | 3,220 lb | 3,384 lb | 3,500 lb |
| Tires | ST225/75R15, Load E | ST235/80R16, Load G | ST235/80R16, Load G |
| Axles | 5,200 lb each | 7,000 lb each | 7,000 lb each |
Included on every Flex Hauler
Good to know
Flex Hauler questions, answered
Will a half-ton truck pull it?
The Standard weighs 3,220 lb empty with a 9,990 lb GVWR, which is half-ton territory. The XL and D4 ride on 7,000 lb axles with a 13,990 lb GVWR, so compare your truck's tow rating to the loaded weight before you commit.
What warranty comes with it?
The frame carries a 3-year structural warranty and every other component is covered for 2 years. Any service shop with a valid EIN can perform warranty work.
Is the MSRP my final price?
No. The numbers on this page are MSRP. As the authorized dealer for New England, I set the final price. Build your trailer above and I'll follow up with a quote. Tax, title, registration, and delivery are extra.
What raises the top deck?

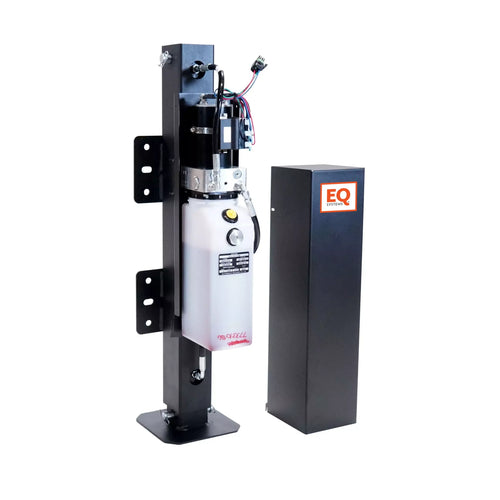

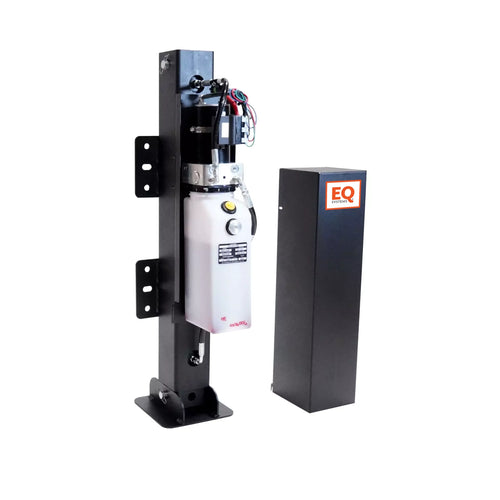

A 16-inch EQ Systems hydraulic scissor lift rated to 25,000 lb lifts the upper deck with the first machine already on it. The same dual-switch controls run the 20-inch hydraulic tongue jack.
Where is the Flex Hauler made?
EQ Outdoors designs and builds every Flex Hauler in Cassopolis, Michigan.
Can I order custom colors?
Yes. The frame, front ramp, lid, and inlay can all be powder coated to match your machine or your business. Choose the color options in the builder and I'll go over the choices with you.
